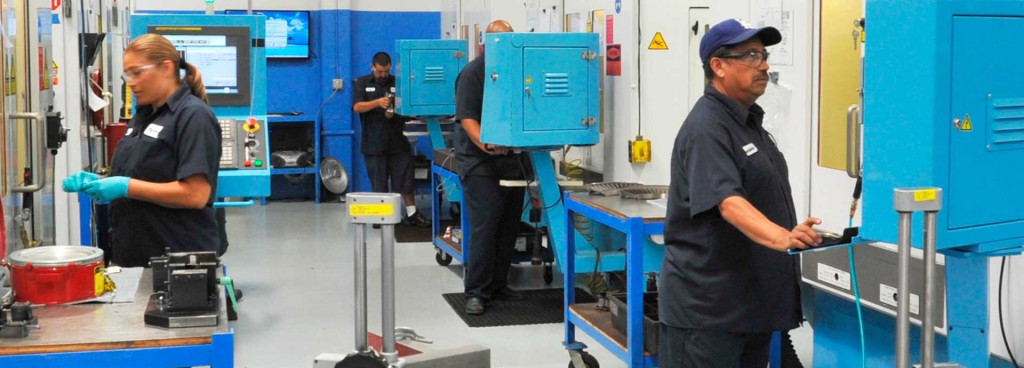

Turbine Vane & Blade Cell

At Pacific Sky Supply Inc, there are five manufacturing cells for the production of strategic commodity parts for the T56/501/501K engines. Turbine vane and blade manufacturing—one of the core competencies of Pacific Sky Supply Inc—are manufactured on-site within the Turbine Vane and Blade Cell, utilizing innovative machining centers that are reliable, state-of-the-art technology for high precision manufacturing. We’ve been in production of all (4) stages of hot section components for almost two decades, and currently offer a multitude of turbine vane assemblies, and turbine blades, specific to the operable environment of the engine.

1st Stage Turbine Vanes

Stellite 31, AEP 100 Coating
PNs 23031745, 23031746, 23031747, 23031748

Stellite 31, Platinum Aluminide TBC​
PNs 23054576, 23054577, 23054578, 23054579

Mar-M-509, AEP 100 Coating
PNs 23031780, 23031781, 23031782, 23031783

Mar-M-509, Platinum Aluminide TBC
PNs 23075515, 23075516, 23075517, 23075009

1st Stage Turbine Saddle Vane

Stellite 31, AEP 100 Coating
PN 23031744

2nd Stage Turbine Vanes

Inconel 738, AEP 32 Coating
PNs 23009987, 23009988, 23031736, 23031741

MAR-M-247, Platinum Aluminide Coating
23067762

Mar-M-247, AEP 32 Coating
PN 23083698

3rd Stage Turbine Vanes

Stellite 31
PN 23009375, 6846994

4th Stage Turbine Vane

Stellite 31
PN 6846995

1st Stage Turbine Blades

Mar-M-246, AEP 32 Coating
PN 6898061

Inconel 738, AEP 32 Coating
PN 6897621

501D13, Inconel 738, AEP 32 Coating
PNs 23003481, 23003491

1st Stage Directionally Solidified Turbine Blade

Mar-M-247, Platinum Aluminide Coating
PN 23065975

2nd Stage Turbine Blades

Inconel 738, AEP 32 Coating
PN 6808062

Mar-M-247, Platinum Aluminide Coating
PN 23052149

3rd Stage Turbine Blade

Inconel 738
PN 6875243

4th Stage Turbine Blade

Waspaloy
PN 6852412
